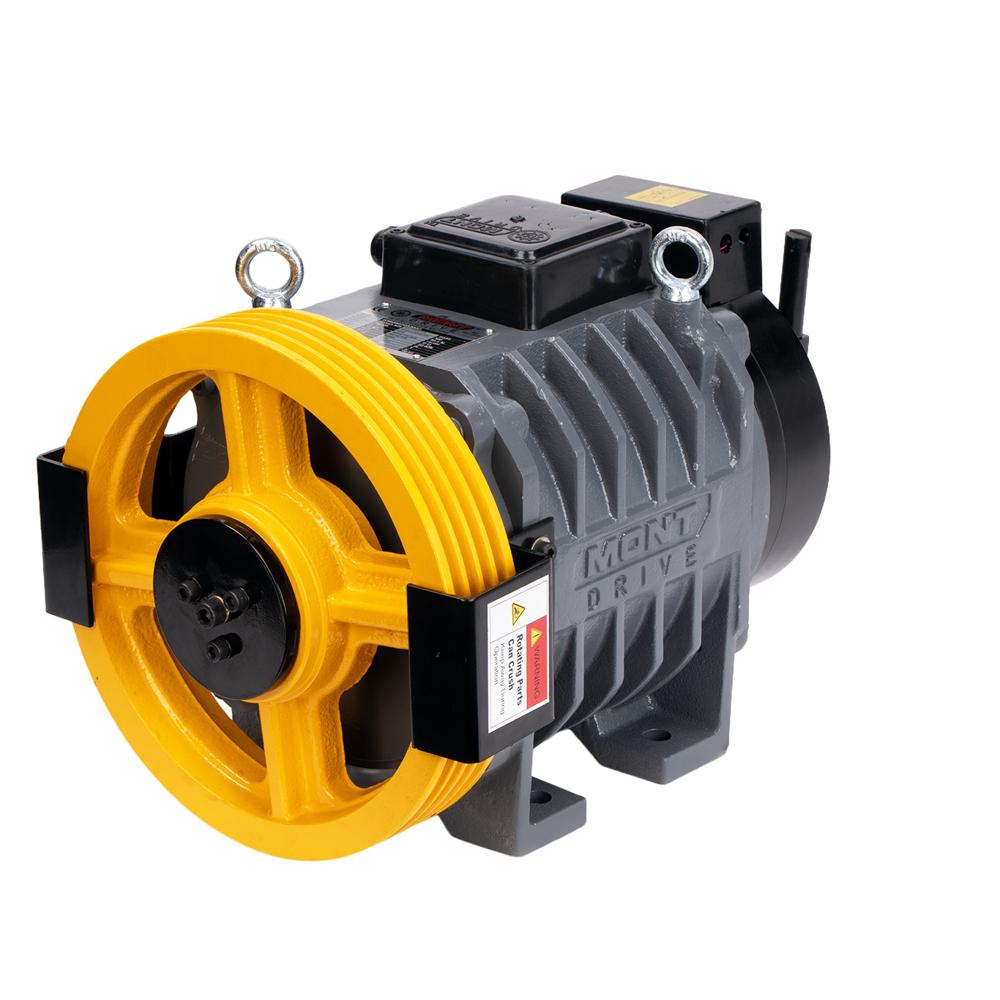

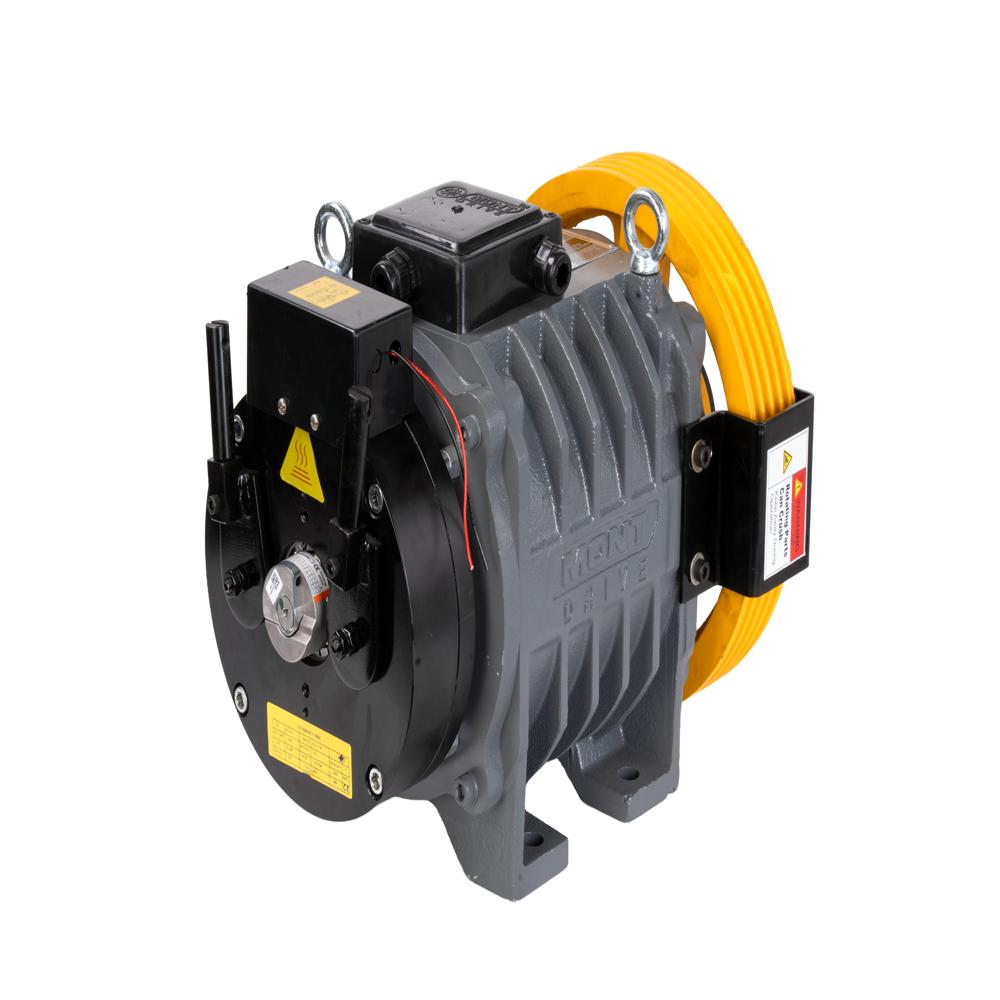

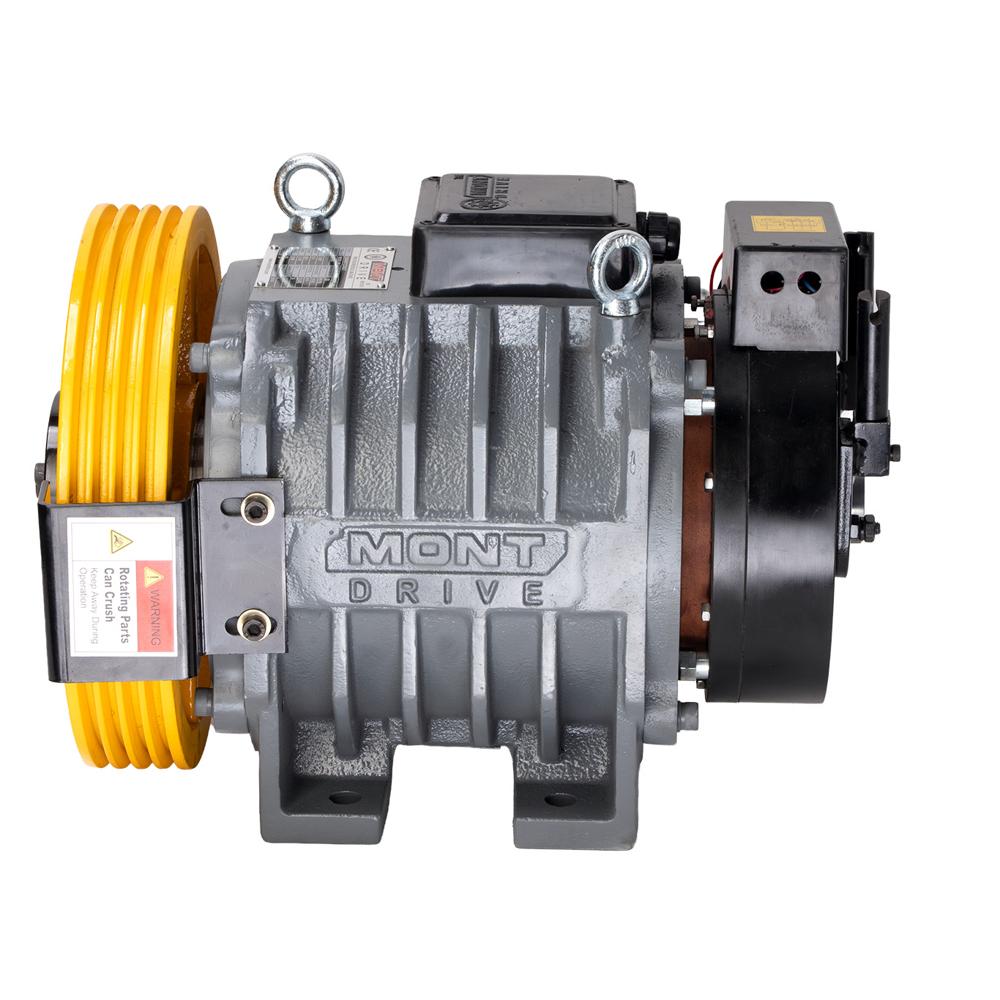

8P Gearless Elevator Machine

Name: 8P Gearless Elevator Machine
Brand: J. D. ENGINEERING WORKS
Price: 76000.0 INR
Availability: InStock

76000.0 INR/Unit

Get a Price/Quote

Product Details:

Bearing Type Heavy Duty Bearings
Features Gearless, Vibration-Free, Low Maintenance, High Torque, Energy Saving
Poles Number 8 Poles
Standard EN 81-20
Starting Type Direct On Line (DOL)
Power Rating 7.3 kW
Motor Type Permanent Magnet Synchronous Motor (PMSM)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

8P Gearless Elevator Machine Price And Quantity

Minimum Order Quantity 1 Unit
Price 76000.0 INR/Unit

8P Gearless Elevator Machine Product Specifications

Power 7.3 kW
Features Gearless, Vibration-Free, Low Maintenance, High Torque, Energy Saving
Output Power 7.3 kW
Weight 190 kg
Bearing Type Heavy Duty Bearings
Shaft Diameter 38 mm
Product Type Gearless Elevator Machine
Mounting Type Base Mounted
Poles Number 8 Poles
Standard EN 81-20
Starting Type Direct On Line (DOL)
Motor Type Permanent Magnet Synchronous Motor (PMSM)
Frequency (MHz) 50 Hz
Power Rating 7.3 kW
IP Rating IP54
Phase Three Phase
Noise Level 55 dB
Current Type AC
Dimension (L*W*H) 650mm x 400mm x 320mm
Ambient Temperature -10C to +40C
Voltage 380V
Protect Feature Thermal Protection
Torque 400 Nm
Speed 1-1.75 m/s
Efficacy IE3 High Efficiency
Rated Voltage 380V
Horse Power 10 HP
Color Yellow and Grey
Pressure Standard Atmospheric
Cooling Method Natural Cooling
Rated Frequency 50 Hz
Sealed Type Sealed Enclosure

Installation Position Machine Room Less (MRL) & Machine Room (MR)
Overload Capacity 150% for 60 seconds
Lubrication No Need for Regular Oil Lubrication
Duty Cycle S1 Continuous
Encoder Type Incremental Encoder 2048 ppr
Temperature Protection PTC Thermistor
Drive Type VVVF Drive Compatible
Rotor Position Detection Digital Sensor
Door Drive Compatibility Compatible with Integrated Door Drive Systems
Brake Voltage DC 110V
Maximum Lifting Capacity 1300 kg
Service Life Expectancy Over 20 Years
Usage/Application Passenger and Freight Elevators

Product Description

Passengers lifts are a common facet or feature across buildings, be it commercial, residential or industrial. These arent something new but an integral addition to premises across the globe, for decades.

What were earlier traditional and used basic mechanical functioning to operate, are now being operated with advanced technologies and mechanism. Passenger lift motors have gone through a lot of evolutions and changes over the past few decades, and now we are seeing such lift motors that are fully seamless and efficient in operative function.

Reliable Performance and Energy Efficiency

Equipped with a high-torque, gearless PMSM motor, this elevator machine achieves IE3 high efficiency and delivers superior energy savings compared to conventional systems. Its robust design, heavy-duty bearings, and direct-on-line start capability ensure reliable operation across varied usage scenarios, while the sealed enclosure (IP54) keeps out dust and moisture.

Versatile and Low-Maintenance Operation

Designed for both passenger and freight elevators, the 8P Gearless Elevator Machine is compatible with modern VVVF drive systems and integrated door drives. Its lubrication-free construction and advanced digital sensors reduce maintenance requirements, while powerful overload capabilities (150% for 60 seconds) ensure steady performance even under demanding conditions.

Safety, Comfort, and Compliance

Featuring PTC thermistor protection and thermal safeguards, this machine prioritizes passenger safety. Noise and vibration are minimized (55 dB) for enhanced riding comfort, and the system strictly complies with EN 81-20 elevator safety standards. It is engineered for machine room or MRL installation, adapting flexibly to different building layouts.

FAQ's of 8P Gearless Elevator Machine:

Q: How does the 8P Gearless Elevator Machine ensure safety during operation?

A: Safety is prioritized through integrated PTC thermistor temperature protection, IP54 sealed enclosure, thermal protection features, and a reliable DC 110V brake system. These safeguards work together to prevent overheating, electrical hazards, and braking failures.

Q: What makes this elevator machine suitable for both passenger and freight applications?

A: With its maximum lifting capacity of 1300 kg, robust 400 Nm torque output, and overload capability of 150% for 60 seconds, it efficiently handles both passenger and heavier freight loads. Its vibration-free operation is ideal for a comfortable passenger experience.

Q: When is regular maintenance required for this gearless elevator machine?

A: The machine is designed for low maintenance, featuring heavy-duty bearings and lubrication-free operation. Regular routine inspections for safety and electronics are recommended, but frequent oiling or servicing is not necessary due to its advanced sealed design.

Q: Where can this elevator machine be installed?

A: It can be installed in both Machine Room Less (MRL) and traditional Machine Room (MR) settings, providing flexibility for various building architectures. Its compact dimensions (650mm x 400mm x 320mm) allow for efficient space utilization.

Q: What is the process for starting the 8P Gearless Elevator Machine?

A: The machine supports Direct On Line (DOL) starting and is compatible with VVVF drive systems, enabling seamless integration. Rotor position is detected via a digital sensor, optimizing performance and safety during startup and regular operation.

Q: How does the incremental encoder enhance operation?

A: The 2048 ppr incremental encoder delivers precise feedback for speed and position control, ensuring smooth acceleration, accurate stopping, and efficient movement throughout the elevator shaft.

Q: What are the key usage benefits of this elevator machine?

A: Major benefits include lower noise (55 dB), high energy efficiency, long service life over 20 years, easy integration with modern door drives, vibration-free rides, IP54 protection, and compliance with the latest safety standards.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Elevator Motor' category

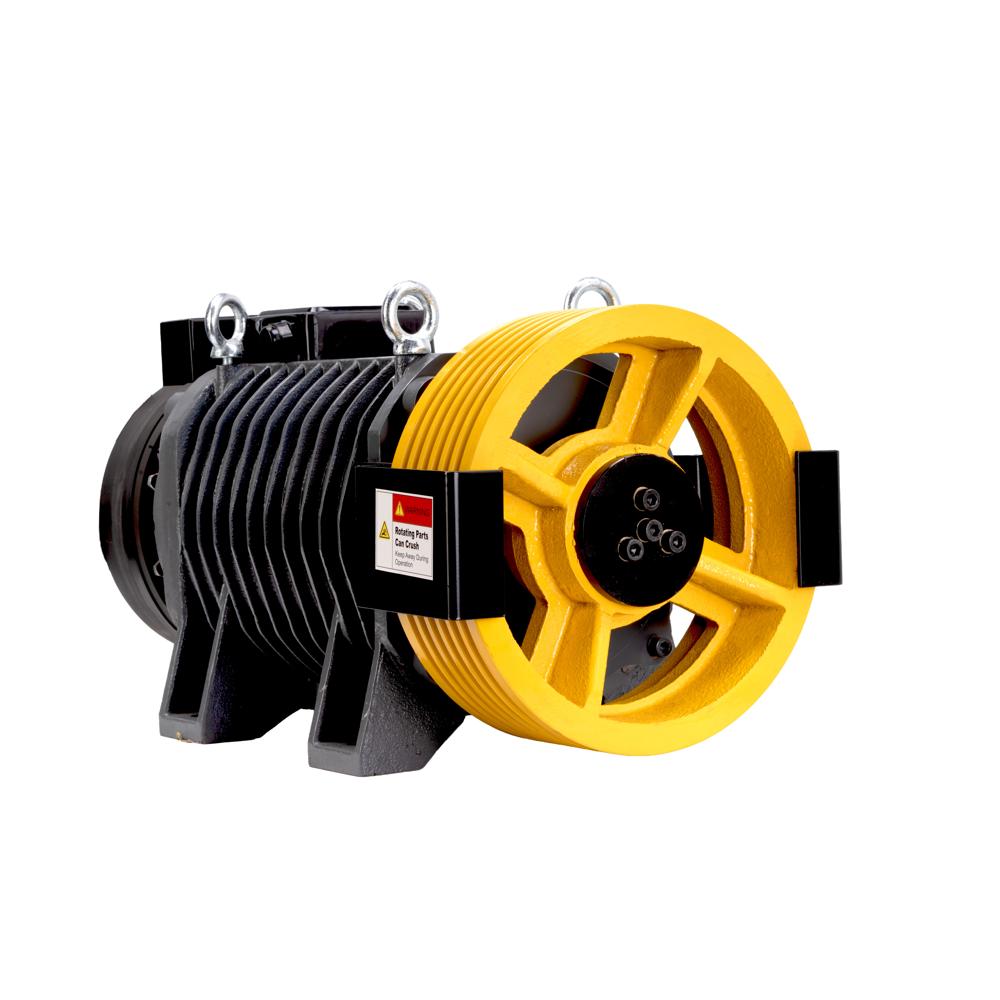

10 passenger Gearless Elevator Motor Price : 98000.00 INR/Piece Minimum Order Quantity : 1 Dimension (L*W*H) : 490*345*360 Inch (in) Type : Passenger Elevators Phase : Three Phase Drive Type : AC Color : Yellow Blue Power Supply : Electric Speed : 1.0 m/s Frequency (MHz) : 50 Hertz (HZ) Voltage : 415 Volt (v) Weight : 170 Kilograms (kg) Power : 7.5 Horsepower (HP)
