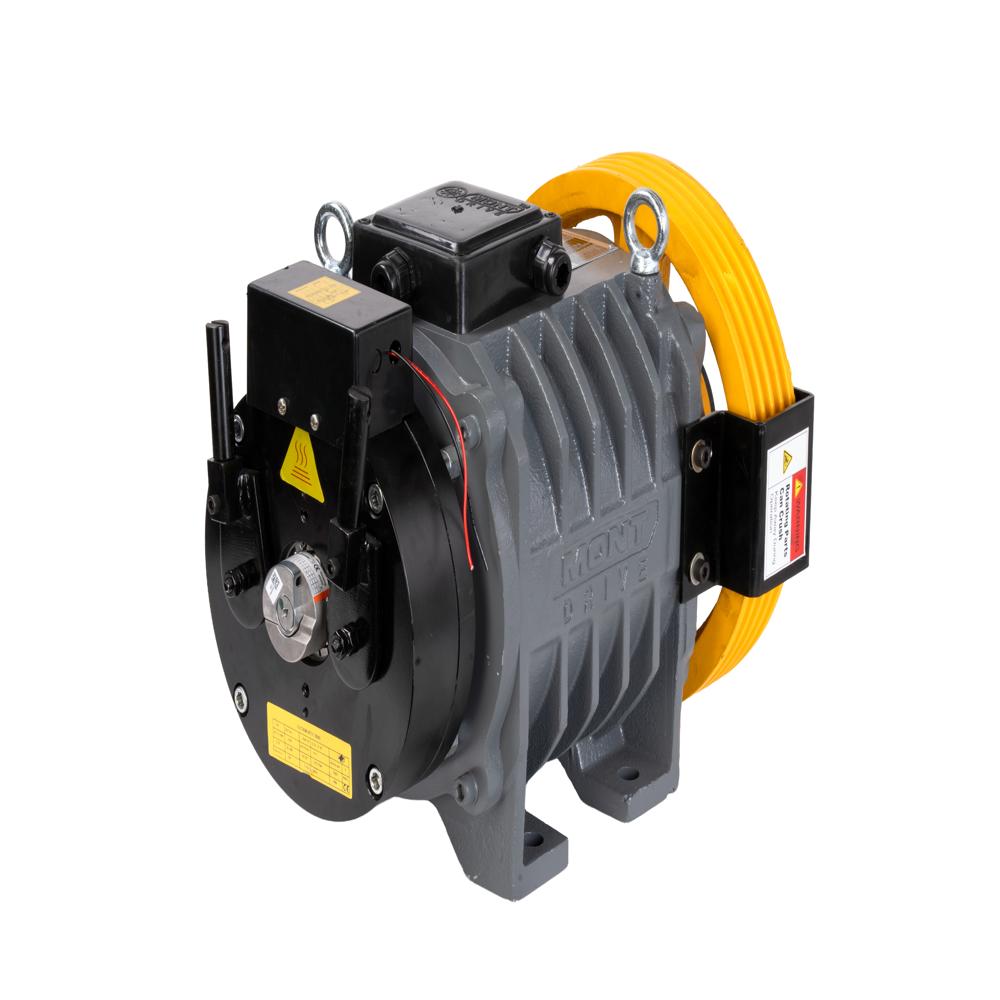

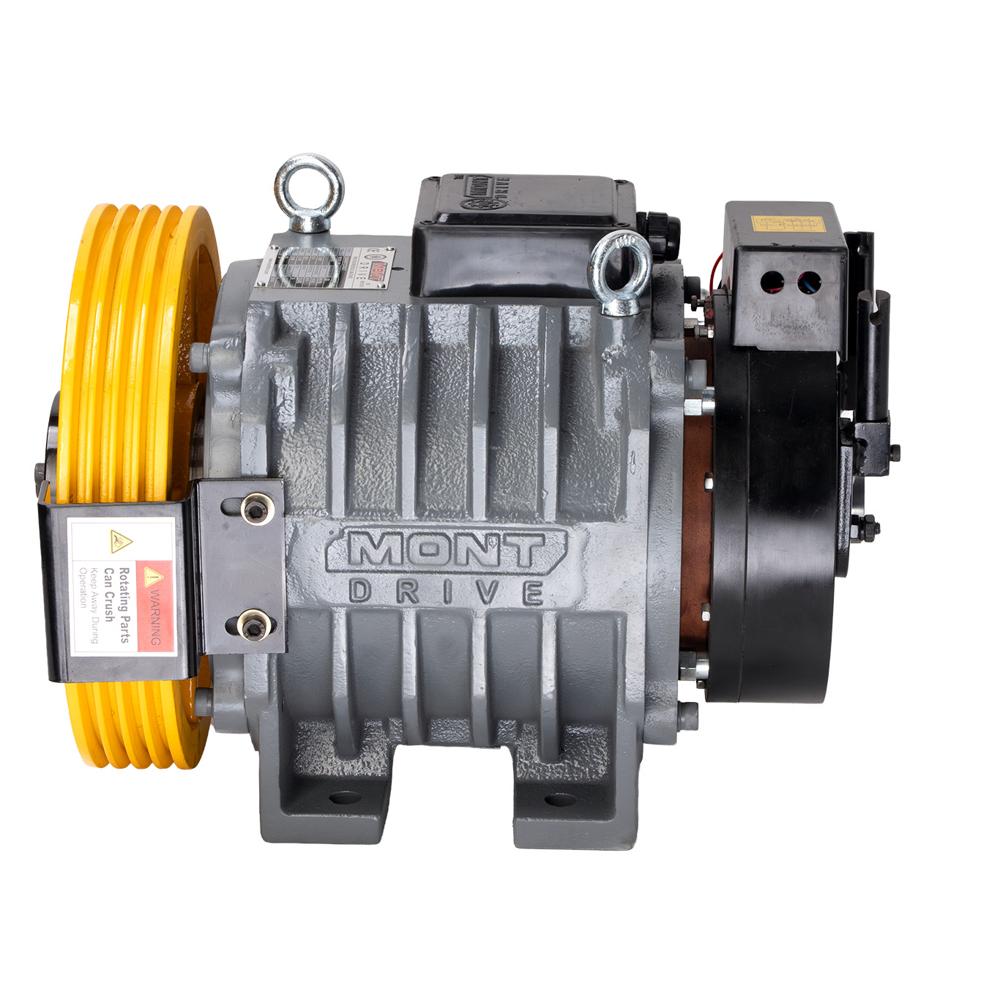

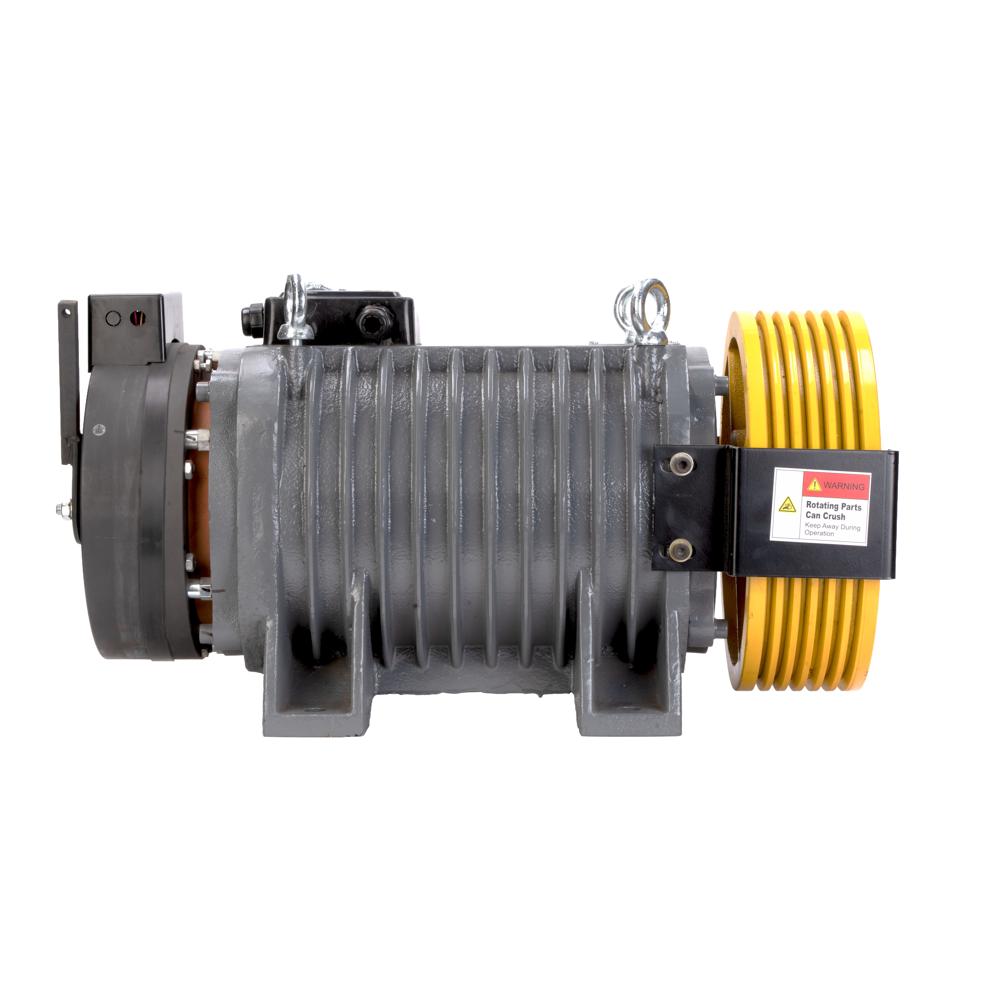

Gearless Elevator Traction Machine Gearless Elevator Traction Machine Gearless Elevator Traction Machine Gearless Elevator Traction Machine
Gearless Elevator Traction Machine
Gearless Elevator Traction Machine Gearless Elevator Traction Machine Gearless Elevator Traction Machine

Gearless Elevator Traction Machine

72000.0 INR/Number

Product Details:

  • Voltage 380vac Volt (v)
  • Frequency (MHz) 50 Hertz (HZ)
  • Phase Three Phase
  • Speed 1 M/S Km/hr
  • Power 5 hp Horsepower (HP)
  • Color Green
  • Weight 155kg Kilograms (kg)
  • Click to View more
X

Gearless Elevator Traction Machine Price And Quantity

  • 1 Number
  • 72000.0 INR/Number

Gearless Elevator Traction Machine Product Specifications

  • Green
  • 155kg Kilograms (kg)
  • 50 Hertz (HZ)
  • 5 hp Horsepower (HP)
  • 380vac Volt (v)
  • 1 M/S Km/hr
  • Three Phase
  • 5

Gearless Elevator Traction Machine Trade Information

  • 2 Days
  • All India

Product Description

A gearless driving machine is a direct-drive system in which there is no reduction gear between the motor and the drive (or hoisting) sheave. That is the drive sheave is directly connected to the motor and brake. In the modern era, gearless designs are being used in the tallest structure in the world.


No Machine Room is required

JD Engineering Works are remarkably lightweight and space-efficient, compared to traditional traction elevators. Less structural support is required, and easier access to machine room service enhances safety standards.

Energy saving

The Optimised power factor of the J.D. Machine means it utilizes less power and produces less heat than traditional traction elevators, with energy savings of up to 40%( compared to conventional geared elevators.)

Noise Free

J.D. Engineering Works gearless elevator machine works without any type of vibration or noise, ensuring an ultimately peaceful, comfortable, and smooth per performance.

Compact in Size

J.D. Engineering Works gearless elevator machines are compact, minimizing space requirements by eliminating the traction machine gearbox.

Specification

Color

Grey

Current

9 Amp

Duty Load

544 kgs.

Encoder

Heidenhain (1387)

Features

Easy to install, Low weight, Gearles

Frequency

24 HZ

IP Degree of Protection

IP 41

Passenger Capacity

8 Passengers

Torque

250 NM

Warranty

4 Years

Weight

Approx. 165 Kgs

poles

24 Poles

Sheave diameter

320 mm

Country of Origin

Made in India

Voltage

380V Three Phase

Brake Voltage

110V DC

Usage/Application

Lifts/ Elevators

Brand

Mont Drive

Material

Cast Iron
