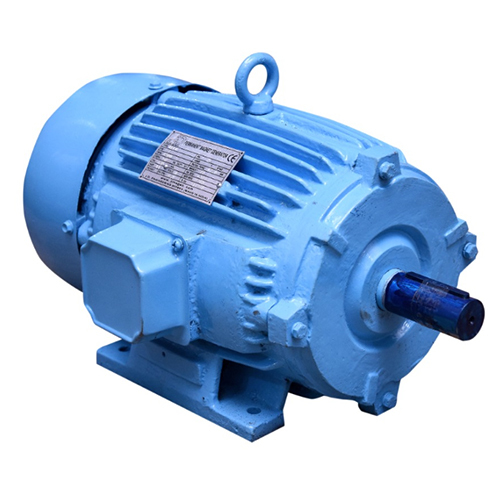

Permanent Magnet Generators

Permanent Magnet Generators
Permanent Magnet Generators
Product Code : 45K
Brand Name : J. D. ENGINEERING WORKS
Price And Quantity
  • Minimum Order Quantity
  • 1Pieces
  • Unit of Measure
  • Piece/Pieces
Product Specifications
  • Pressure
  • Moderate Pressure
  • Engine Type
  • Air-cooled
  • Product Type
  • Permanent Magnet Generators
  • Output Type
  • AC Single Phase
  • Rated Power
  • 22KW
  • Rated Voltage
  • 230V
  • Starting Type
  • Electric Start
  • Rated Frequency
  • 50HZ/60HZ
  • Color
  • Green
  • Phase
  • Single Phase
  • Speed
  • 3000r/m
Product Description

By keeping track of market developments, we bring forth for our clients a distinct assortment of Permanent Magnet Generators that are used for converting the mechanical output of various steam turbines, reciprocating engines and hydro turbines into electrical power. Our Permanent Magnet Generators are manufactured by our experts using best grade material and highly developed technology. Offered range is synchronous, where the rotor windings have been replaced with permanent magnets.

J.D. Engineering Works, is a key manufacturer of Permanent Magnet Generators, and other allied products. We keep up with technically advanced solutions to accelerate the industrial processes. With the engineering expertise and deep technical knowledge, we work towards designing & manufacturing reliable, innovative solutions for transmission, control and power generation in the renewable energy & industrial sectors.

Our products find applications in wind technologies, hydro-turbines, and industrial machines etc. We always work to innovate products that solve the problems of power efficiency as well as keep our environment clean & green. We offer economical and technologically good solutions to serve the industrial and commercial sector markets. We make effective use of the components and technologies to manufacture quality products.

What is a Permanent Magnet Generator?

A permanent magnet generator converts the mechanical energy into electrical energy. This device uses permanent magnets instead of the rotor windings. It does not require a separated DC supply for the excitation circuit, or has contact brushes and slip rings. These devices are excellent alternatives to traditional induction motors, and can be linked with diesel generators, turbines & hybrid vehicles. Also, these machines do not require a specific work environment and thus can be utilized in wind, water machines.

The Permanent Magnet Generator (PMG) can work as a DC voltage machine with rotary collector, brushes, or more often an AC synchronous multiphase device whereas the rotor and stator magnetic fields are turning at the same speed. This ensures reduced excitation losses in the rotor, represent 20-30% of the overall generator losses. The decreased losses also help in lower temperature rise in the generator. Hence we get a more cooler system, offering improved reliability and life of the bearings.

A small piece of Neodymium Boron Iron (NeFeB) is ten times stronger than the conventional ones, and we keep up with the same effective material. With further research we can also improve the reliability & strength of the PMG. The demand for this device is increasing day-by-day. Also, the machines do not use environmental resources to make energy, and are environment friendly. They can reduce the pollution impact by upto 50%, and environmental experts suggest the utilization of permanent magnet generators.

Types Of Permanent Magnet Generator:
  • Radial Flux Permanent Magnet Generator
  • Axial Flux Permanent Magnet Generator

RADIAL FLUX PERMANENT MAGNET GENERATOR: Technical Specification

Description

Parameter

RPM

1000

Volts

220/440

Frequency

50

Pole

6

Insulation

H Class

Working Temperature

-40 deg 80deg

Minimum Efficiency

93%

*Starting Torque 3NM

USED FOR THE GENERATION OF ELECTRICITY

AXIAL FLUX PERMANENT MAGNET GENERATOR

Description

Parameter

RPM

190

Volts

220/440

Frequency

50

Pole

32

Insulation

H Class

Working Temperature

-40 deg 80deg

Minimum Efficiency

94%


Description

Parameter

RPM

190

Volts

220/440

Frequency

50

Pole

32

Insulation

H Class

Working Temperature

-40 deg 80deg

Minimum Efficiency

94%


Features & Advantages Of Permanent Magnet Generator:
  • Require less maintenance with fewer components.
  • Compact, and hence need very less space.
  • Easy to set up and repair.
  • Increased reliability, efficiency & simplicity.
  • The PMG runs for years without wear & tear, and silent working.
  • Environment friendly, and don't rely on weather to produce electricity.
Uses Of Permanent Magnet Generator:
  •  A major source for commercial electrical energy.
  • Commonly used to convert mechanical power of gas turbines, steam turbines, hydro turbines & reciprocating engines into electrical power.
  • Utilized for water energy and wind energy projects.
  • Ideal for homes to large power plants.


Symbols

Units

Type

57BL60L2

57BL60L4

57BL120L2

57BL120L4

57BL180L2

57BL180L4



mm

57

57

57

57

57

57

Long

L 1

mm

54

54

82

82

120

120

Input power

Un

VDC

24

48

24

48

24

48

Rated power

Pn

W

60

60

120

120

180

200

Phase number

P


3

Rated speed

Nn

RPM

4000

4000

4000

4000

4000

4000

Max. Speed

Np

RPM

5000

5000

5000

5000

5000

5000

Rated torque

T

mNm

145

145

290

290

430

480

Max. Torque

Tmax

mNm

300

300

600

600

860

960

Rated current

l

Ams

3.2

1.6

6.3

3.1

10.3

5.6

Max. Current

lmax

Arms

6.5

3.3

13

6.5

20.6

10.2

Voltage constant + 5%


Vrms/Krpm

2.8

5.6

2.75

5.5

2.7

5.4

Torque constant + 5%


Nm/Arms

0.046

0.09

0.046

0.09

0.046

0.09

Moment of inertia


10^4kgm^2

0.167

0.167

0.293

0.293

0.471

0.471

Resistance+ 10% (25oC)

R

Ω

0.3

1.05

0.15

0.54

0.08

0.28

Inductance

L

mH

0.32

1.25

0.16

0.64

0.12

0.45

Sensor

Hall

Ins. class

E

Protective rating

IP40

Operating temperature

0-+50oC (storage temperature – 20 -+60oC)

Operating RH

85% RH or below (non-condensing)

Operating environment

Outdoor (no direct sunlight), no corrosive gas. No flammable gas. No oil mist, no dust

Attitude

1000m or below
